Hello,
I'm testing my programs under Windows 10 and found that effect:
by using function DCGROUP the text of CAPTION is crossed through
by the frame line.

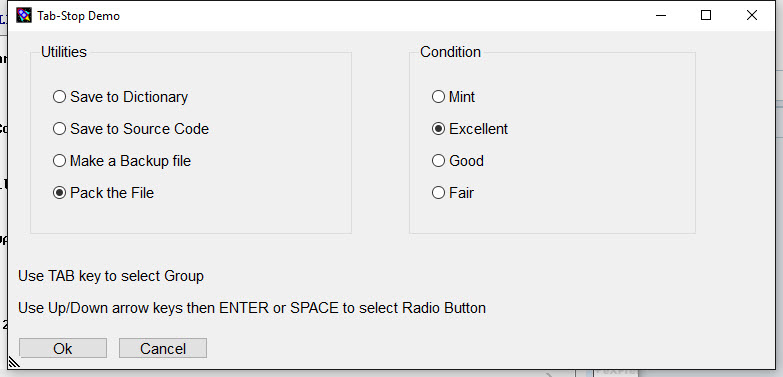

As an example see XDEMO->Samples->Group 1 ->TabStops (Xsample_21)
and Windows 10.
Here doesn't work the use of the TAB-key as well.
Is known a solution to avoid that effect?
Dieter

Put this at the beginning of your program and see if it works:

DC_GroupBoxFix(.t.)

This function doesn't change something.
Dieter

Are you using Xbase 2.0. If so, is it a recent update, like April 2016 and later.

Cliff

I use xbase++ 1.90.331 and eXPress++ 2.0.264

Dieter

Hello,
the same effect occurs with DCSTATIC .... _GROUPBOX

I couldn't solve the problem but found a way to bypass it by avoiding to define the CAPTION clause
and by adding a line with a function HL_GROUP(......). Doing so there is the advantage to define
in more detail the text of CAPTION with FONT, SIZE, COLOUR. See example.

Dieter

* Example

@ 1,74 DCGROUP oGroupLief SIZE 16, 8 FONT "9.Arial" ;
COLOR GRA_CLR_BLACK,GRA_CLR_CYAN PARENT oTADat

==> HL_GROUP(@GetList,"Status","9.Arial",@oGroupLief,0.7)


/*
Name : Headline for DCGROUP, GROUPBOX
Does :
Parameters : GetList, text for headline,Font,Object,Hight
Returns :
Notes :

Author : ds
Date Created : 25.08.2016
Time Created : 09:21:22
Last change: DS 25.08.2016 14:05:50
*/
FUNCTION HL_GROUP(GetList,cTxt,cFontX,oObjX,nHoch)
@ 0.0,2 DCSAY " "+cTxT+" " SAYFONT cFontX SAYSIZE 10,nHoch ;
SAYOPTIONS XBPSTATIC_TEXT_VCENTER ;
SAYCOLOR GRA_CLR_DARKGREEN,GRA_CLR_WHITE SIZE 0 PARENT oObjX

RETURN NIL
***

I am using windows 10 and do not see the issue you report. I do see tabstop not navigating and neither does the cursor keys. Express 264, Alaska 1.9.
